| ►Interface: |
DB-15 male connector to 10 Base-5 |
►Technique: |
Baseband |
| |
BNC connector to 10 Base-2 |
►LEDs: |
POWER |
| ►Cable length: |
500 m maximum per Thick Ethernet |
►Dimensions:
|
3/4" (H) x 1 3/8" (W) x 2 3/5" (D) |
| |
185 m maximum per Thin Ethernet |

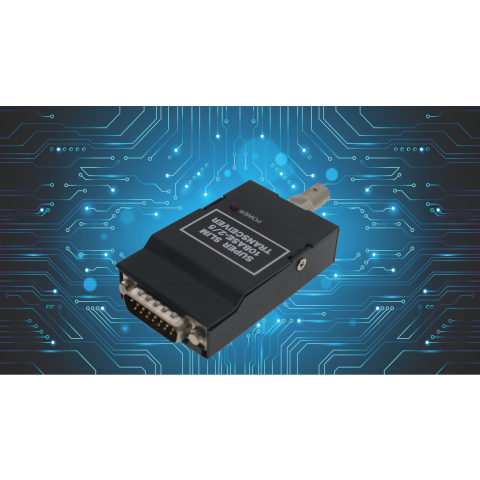

Super Slim design ideal for narrow slot spaces such as |
| ►External Power: |
No External Power required |
Sun Sparc, IBM RISC/6000 and Apple Macintosh workstations. |
| ►Temperature: |
0 to 55C (standard operating) |
SQE switch provided 1 LED for Power indicate status. |
| ►Humidity: |
10 to 90% (non-condensing) |

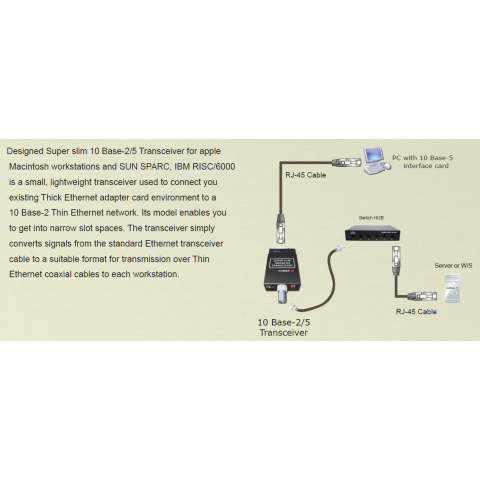

Converts existing Thick Ethernet Card/10Base-2 application. |
| ►Standard: |
IEEE 802.3 10Base-T/10Base-2 |
Conforms to IEEE 802.3 10 Base-2 and 10 Base-5 standard |
| ►EMI: |
Meets FCC Class A Subpart B of Part 15 Requirement |
|
