| ►Interface: | DB-15 male to 10 Base-5 | ►Technique: | Baseband |
| RJ-45 Jack to 10 Base-T | ►Dimensions: | 3/4" (H) x 1 3/8" (W) x 2 3/5"(D) | |
| ►Cable length: | 100 m max. per UTP cable | Super Slim design ideal for narrow slot spaces such as | |
| ►LEDs: | Power/Tx, Col, Link/Rcv, Jabber | Sun Sparc, IBM RISC/6000 and Apple Macintosh workstations. | |
| ►External Power: | No External Power required | SQE switch provided | |
| ►Temperature: | 0 to 55C (standard operating) | 4 LEDs for Link/Rcv, Collision, Power/TX, Jabber indicate status. | |
| ►Humidity: | 10 to 90% (non-condensing) | No external power required. | |

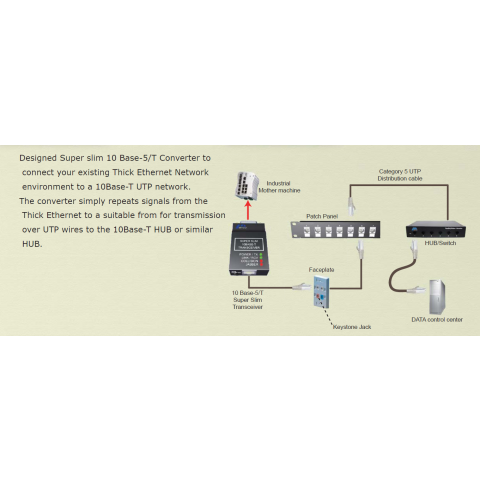

| ►Standard: | IEEE 802.3 10Base-T/10Base-2 | Converts existing Thick Ethernet Card/10Base-T application. | |
| ►EMI: | Meets FCC Class A Subpart B of Part 15 Requirement | ||
